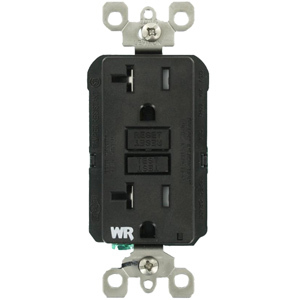

Leviton SmartlockPro® Self Test GFCI


(Model # GFWT2-E)
Leviton SmartlockPro® Self Test GFCI
Leviton
Wallplate Sold Separately

Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.


The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test).

GFWT2-E Features:
  • Color: Black
  • Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options – back and side wire capable
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Stainless steel strap and screws, cold impact resistant face and buttons
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all Decora devices and wallplates; available in select Decora colors
  • UL Fed Spec WC-596 rated
  • Country of origin China
  • >
  • NEMA 5-20R
Electrical Specifications:
  • Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
  • Short Circuit Current Rating: 10KA
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications:
  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -35C to +66C
Material Specifications:
  • Face Material: Polypropylene
  • Body Material: Polycarbonate
  • Line Contacts: Brass Double Wipe .031" Thick
  • Terminal and Grounding Screws: Stainless Steel
  • Yoke: Stainless Steel
  • Clamps: Brass
  • Note: Wallplate Sold Separately
$31.40

Availability:
Usually ships in 1 week

Options
Warranty
1 Year Limited Manufacturer Warranty
