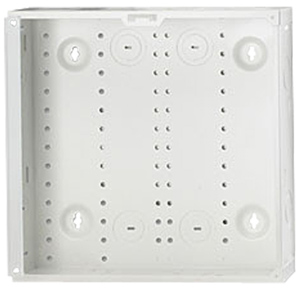

Leviton New SMC-140 Enclosure Only - Empty/No Cover


(Model # 47605-14E)
Leviton New SMC-140 Enclosure Only - Empty/No Cover
Leviton

Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.


New Series 140 Structured Media enclosure (SMC) makes running cable and managing media both simple and more cost-effective. Designed to provide a central distribution point for all your home or small office technologies, the enclosure accommodates networking, fax, Internet, DSL and cable.
Features:
  • Cutout pattern in bottom accommodates all of the same AC power modules and DC power supplies as the 28" and 42" SMCs
  • Mounting slots on the enclosure simplify adjustment for different sheetrock depths
  • Sheetrock depth marks (1/2", 5/8" and 3/4") on the enclosure simplify alignment
  • Lance slots provide clean cable management within the enclosure
  • Product may be surface- or recess-mounted
  • Hinged Cover (47605-14D) and Flush Mount Cover (47605-14C) are designed for use with Series 140 Structured Media enclosures (47605-140 & 47605-14E)
  • Flush-mount cover overlaps 3/4" to hide possible uneven drywall cuts around the SMC
  • Ships with a cardboard insert to help prevent drywall debris or paint over-spray from entering the SMC during the rough-instage of installation
  • Mounting hook on the cover aligns screw holes for easier installation
  • Multiple knockouts on the top and bottom support conduit up to 2" in diameter and facilitate cable routing and entry
  • Self-healing foam grommets protect cable bundles
New Features:
  • Same power cutout pattern in bottom as 280 and 420 enclosures - accommodates single-gang or full width AC and DC power modules
  • Additional knockouts facilitate cable entry and routing from every location
  • Additional lance features in each side of enclosure for better cable management within the enclosure
  • Addition of mounting slots and sheetrock depth marks on each side of the enclosure simplify adjustment of enclosure when flush-mounted
$39.97

Mfg. List Price: $43.50

You Save: $3.53 (8%)
